ISO1461 Standard Highway Guardrail
Classification: Highway Guardrail
Brand Name: FORST
Brief Introduction:
Product Application:A highway guardrail, which is a continuous structure in which corrugated steel guardrails arespliced to each other and supported by a main column. The effect of the vehicle on absorbingenergy during its collision is not easy to be destroyed, and it can also protect the vehicle an...
Details
Quick Details
Place of Origin | Shandong, China | Brand Name: | forst |
Product name | Haghway Guardrail W Beam | Material | S235JR S355JR |
Surface treatment | Hot Dipped Galvanized | Feature: | Impact and corrosion resistant |
Certificate: | ISO9001,AASHTO M180 | Thickness: | 2.5mm-4.0mm |
Application: | Roadway Safety | Length | 4130mm,4320mm |
Keyword: | Traffic Road Steel Barrier | Color: | silver white |
MOQ: | 100pcs | Packaging Details | 20 pieces a pack |
Shipping port | Qingdao Tianjin or other | Supply Ability | 15000 Ton/ per Year |
Production flow chart
Product parameter
Normal Sizes | Length(mm):2000/2320/3200/3810/4000/4320 W:306/310/312/380 Height(mm):80/82/83/85 Thickness(mm) :2.5/2.75/3.0/4.0 Available in different sizes. |
Materail | S235JR,S355JR |
Profile | W beam , Thrie beam |
Surfacce treatment | Hot dipped galvanized or plastic sprayed coating |
Applicabele Standards | JT/T2811995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M180(Corrugated Sheet Steel Beams For Highway Guardrail - USA), RAL RG620 (German) or any other International Standards |
Base Steel | Grade S235JR ( according to DIN EN 10025 and Gr. Daccording to ASTM A283M) or S355JR (ASTM A529M 1994) |
Zinc layer thickness | 550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ) or as per your request |
Features | Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security,environmental protection, etc. |
Relevant Parts | Required for Guardrails Post, Spacer (C, U and Sigma types etc) and Fasteners, Bolts&Nuts,Terminal,Reflectors |
MOQ | 100pcs |
Price Terms | FOB,CFR,CIF |
Payment Terms | T/T,L/C at sight |

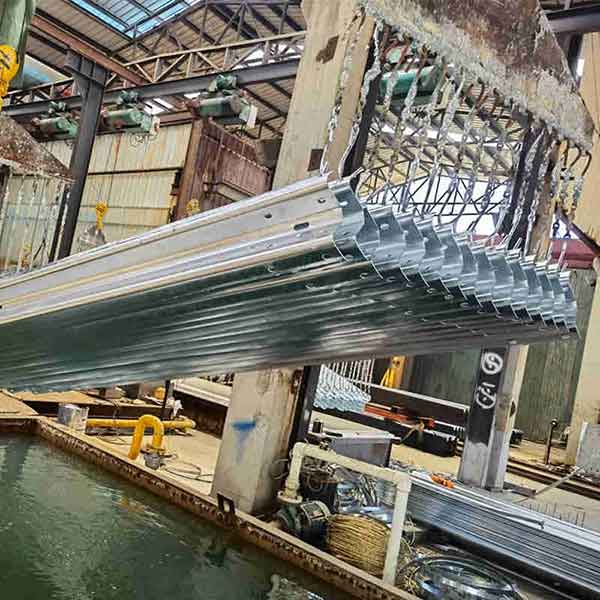

Production workshop
Installation renderings
W-beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects.
W beam guard railings can be used in expressway and highways to absorb maximum energy of the impact force when collision occures and reduce harms to cars and people. It can also protect the vehicles against skidding off roads, especially mountain roads and bridges and prevent the pedestrians from the danger of walking across highways.
Packaged and shipped
